Steam Trap Type J3X-10 ball float, thermal valveation

Kategorie: Kondensatableiter
Hersteller: TLV

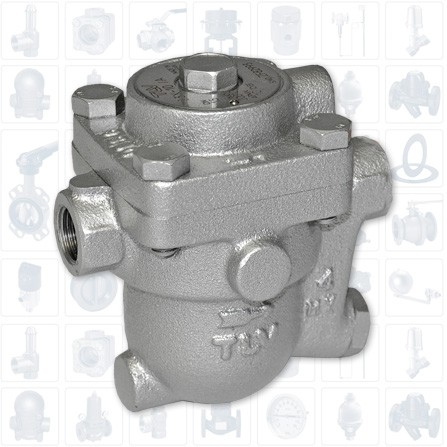

Steam Trap Type J3X-10

Ball float steam trap with thermal valveation – ductile iron

„Free float“-construction, mounting horizontal, with strainer, bypassbore ø 0,8 mm
Female thread in accordance with DIN ISO 228-1; on request ASME / ANSI B1.20.1 (NPT) / flange

N. diameter: DN15 - DN25, ½“ - 1"
N. pressure: PN13 max. permitted operating pressure
Body: ductile iron EN-GJS-400-18 (EN-JS1025, old: GGG-40.3)
Trap: X-element stainless steel, thermally acting, capsule-trap
Gasket: valve EPDM; body PTFE
Temperature: max. 200 °C
